& gt; Kodayake irin wannan a cikin launi zuwa haɗin haɗin haɗin gwal na octagonal & gt; BX jerin kawai za a iya amfani da 6BX flanges & gt; Ƙananan BX don matsin lamba da ya fara a 5,000 lbs, kuma yana ƙarewa tare da 20,000 lbs. & gt; Ba za'a iya amfani da zobba ba.
BXnau'inzoben haɗingwiwatyana nufinsarƙar nau'inkarfe na BX ta hanyar kayan aiki na kayan ƙarfe. Yana da hatimi mai matsa lamba
a cikinjagorancinradial, wani nau'i na musamman na haɗingas na karfe octagonal. Yana da kirki mai kyau a matsayinlamba tsakaningasket da haɗinhaɗin
fuskoki, musamman fuskar waje, da kuma an goge shi don tabbatar da kyakkyawan sakonni.
BXnau'inzoben haɗingwiwatisAn sanya a cikinzane mai kwakwalwa na flange. Lokacinda aka kulle kulle haɗin, an matsa
inaxis direction andispressed close to the upper and lower ring joint grooves, which result inthe plastic deformation to create the seal.
Bayan matsa lamba is raised, ring gasket expandsinradial direction under the force of media pressure. The gasket sticks more tightly to the
faɗar fuskar haɗin haɗin tsagi don samar da kaina-tightening. Duk da haka, farfadowar matsalolin watsa labaru zai lalata kusoshi da haɗawa, shi
zahaifar da rabuwar dangi between the sealingsurfaces, and the sealing ratio ofgaskets is reduced accordingly. BXring type
hadin gwiwayana da irin nauyin matsa lamba zoben zobe.
Lura: Lokacin da aka zaɓa nau'in octagonal, nauyin abu na kushin ya zama 15 ~ 20HB kasa da na fuskar fuska. Yana da
shawararda kushin ba a sake gyara ba.
Hanyoyin da suka dace:
ANSI B16.5-1973, JPI-75-15-70, GB 699, GB1220, JB755, HG20633-97

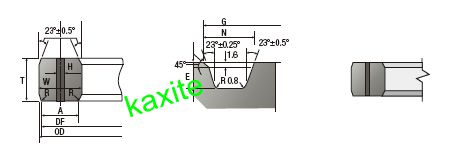

BXRing Joint Gasket Drawings:
Babban sigogin kayan aiki:
|
Abu |
Ƙarƙashin iyaka BRINELL |
Temperatuur (℃) |
Abbreviations |
|
|
Brucellosis |
Rockwell |
|||
|
Soft Iron |
90 |
56 |
-60 500 |
D |
|
Low Carbon Karfe |
120 |
68 |
-40 ~ 540 |
S |
|
304SS |
160 |
83 |
-250 540 |
304 |
|
304LSS |
160 |
83 |
-250 540 |
304L |
|
316SS |
160 |
83 |
-200 815 |
316 |
|
316LSS |
160 |
83 |
-200 815 |
316 |
|
321SS |
160 |
83 |
-200 870 |
321 |
|
347SS |
160 |
83 |
-200 870 |
347 |
|
410SS |
170 |
86 |
-40 850 |
410 |
|
5Cr-0.5M |
130 |
|
-29 650 |
|
|
Copper |
80 |
|
-100 315 |
|
|
Aluminum |
35 |
|
-200 425 |
|
|
Inconel 600 |
150 |
|
-100 1095 |
|
|
Incoloy 825 |
150 |
|
-100 1095 |
|
|
Monel 400 |
150 |
|
-100 760 |
|
|
Titanium |
215 |
|
-200 540 |
|
|
Nickel 200 - |
110 |
|
200 760 |
|
|
Hastelloy B2 |
230 |
|
-100 1095 |
|
|
Hastelloy C276 |
210 |
|
-100 1095 |
|
Me yasa Zaba Amurka
1. Mai sana'a
Mun samar da OEM, ODM na Haɗin haɗin haɗin Ring don abokan cinikinmu a dukan duniya, waɗanda masu cinikinmu suka yaba mana sosai
2. Tabbatar da inganci.
Muna aiwatar da kyakkyawan tsarin kula da ingancin ISO don samar da kayan aiki da kuma kayan da ke ciki.
3. High Quality Abu Quarantee
Dukkanin samfurorinmu sune kayan haɓakaccen abu bisa ga ASTM
4. Bayan bayan sabis
24 Hours x 7 days bayan sabis
5. Kayan sayar da kayayyaki tare da Samll MOQ
Mun yi alkawarin alkawarin ƙananan ma'aikata tare da karamin MOQ.
6.Tainiyar Bayarwa
Don samfurin kayan aiki na samfurin lokaci 3 ~ 7 days
Don samar da kayan aikin kayan aikin lokaci 10-15 days
Domin izinin 7-15 days bisa ga yawa
